PAMBUKA:

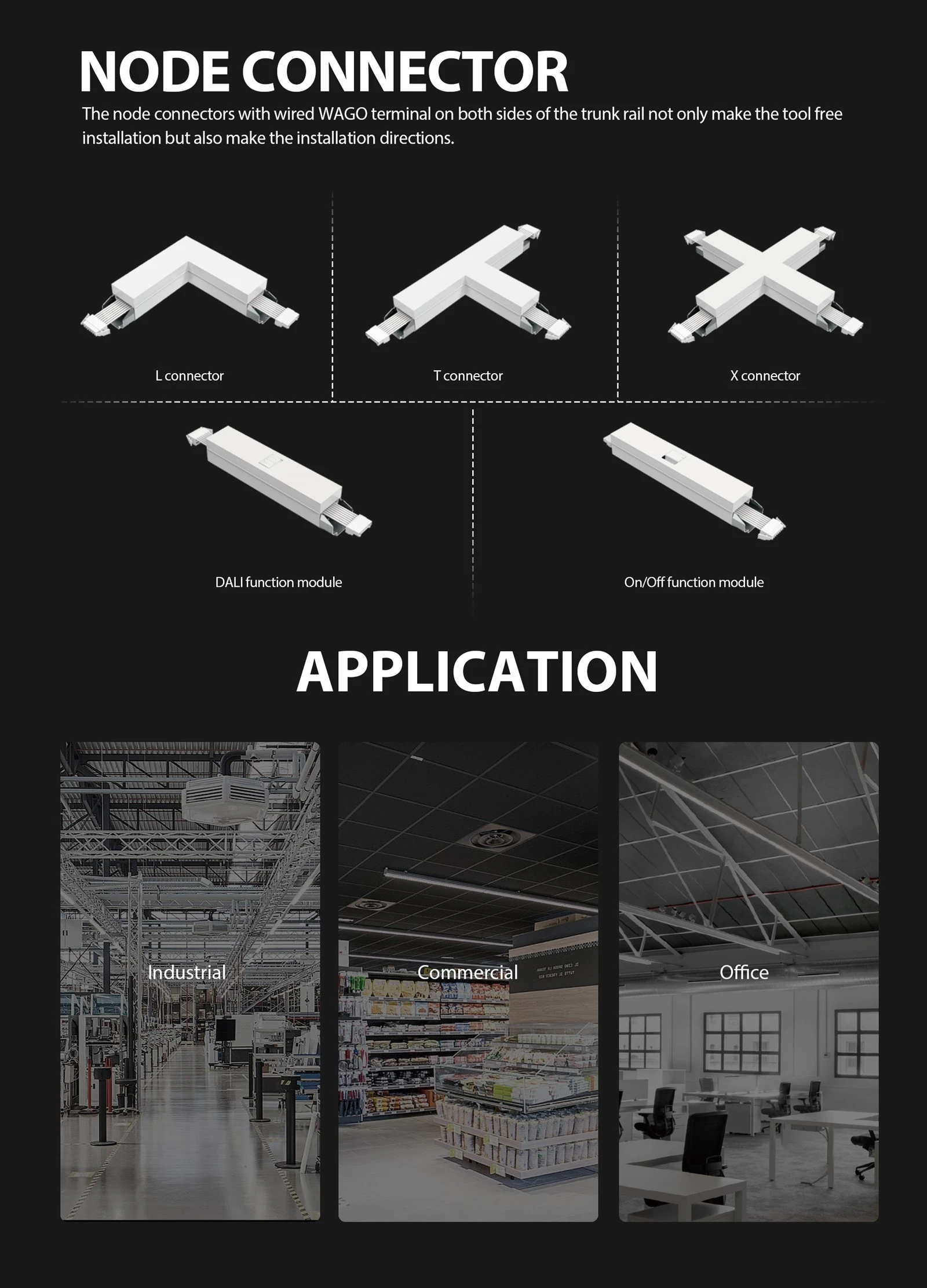

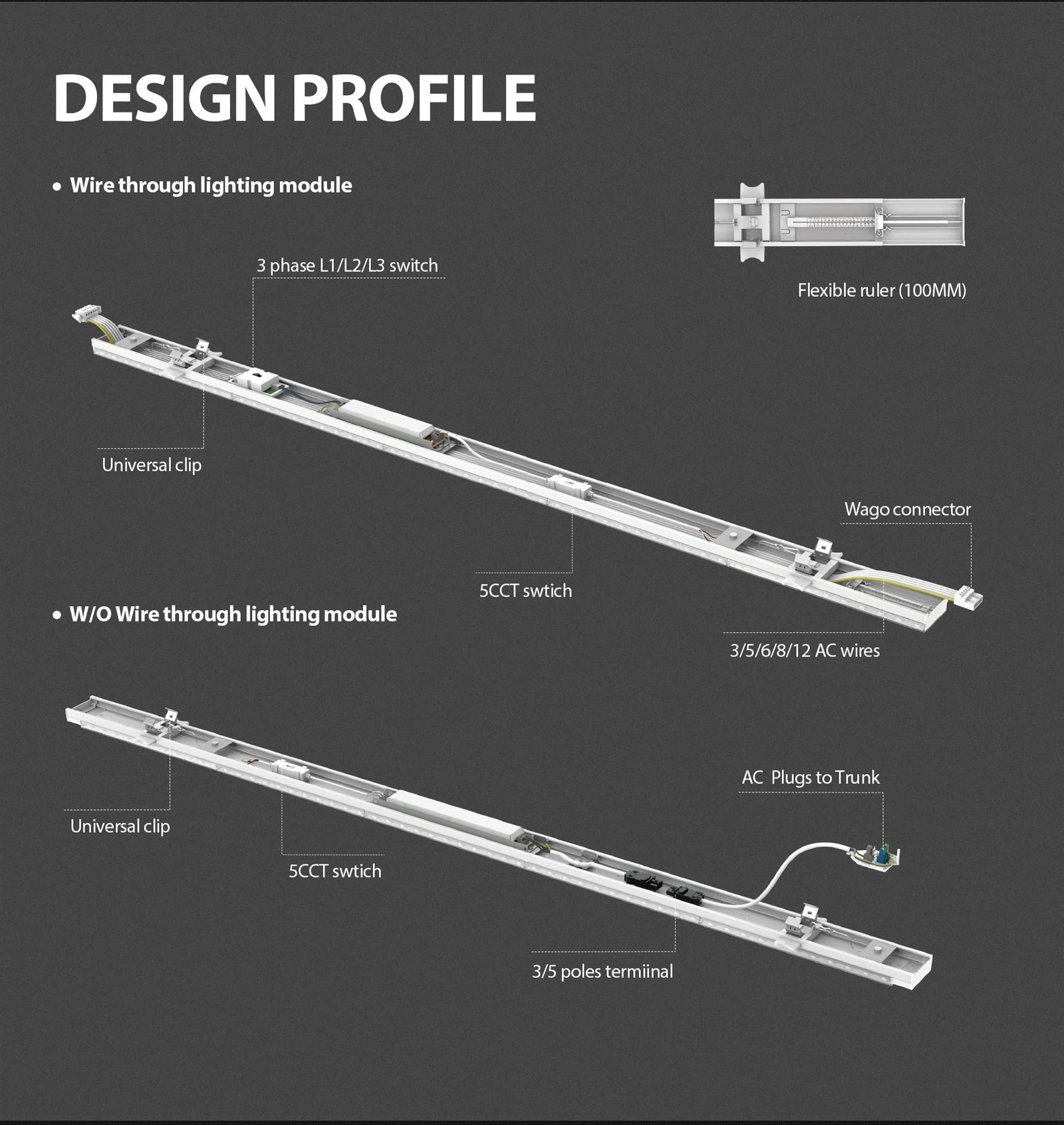

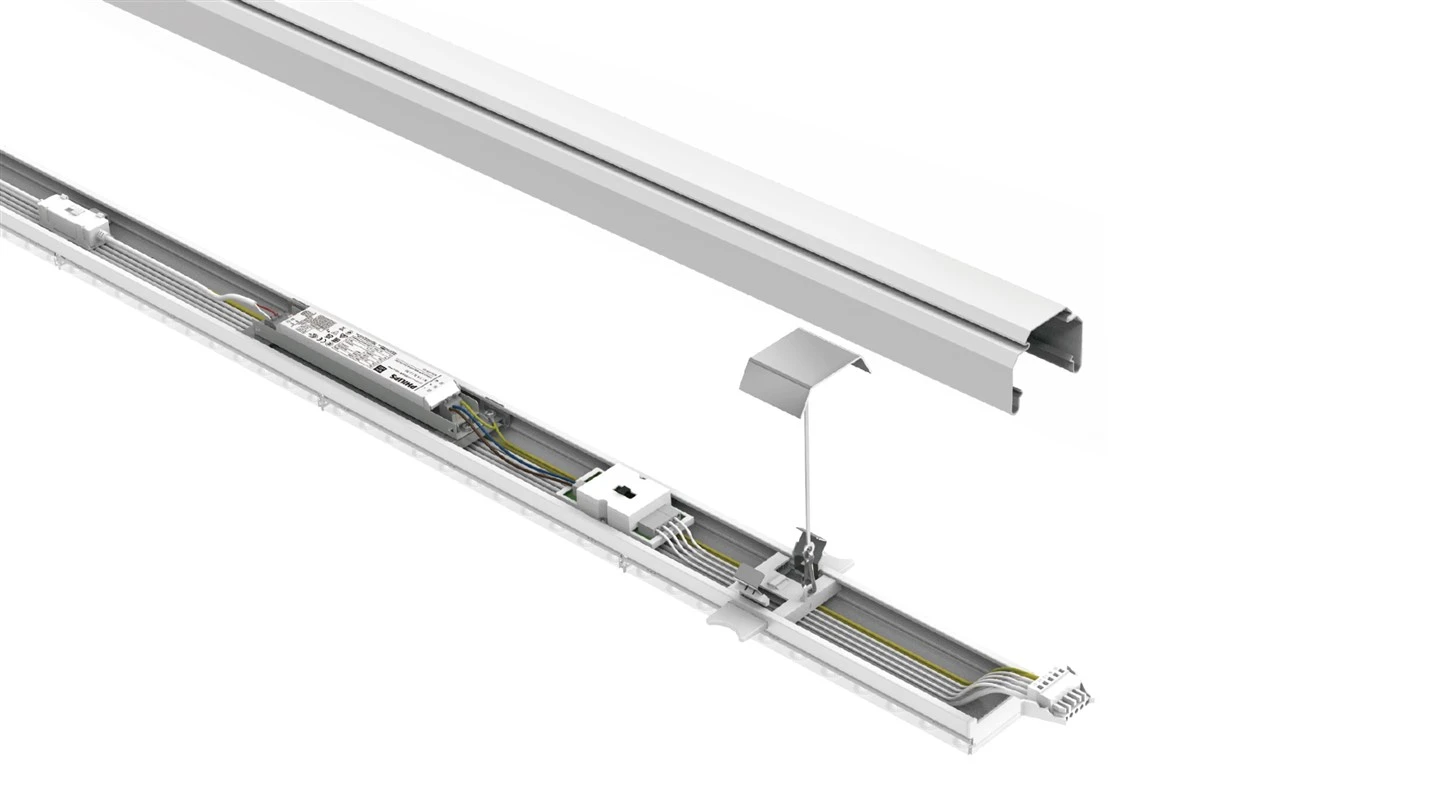

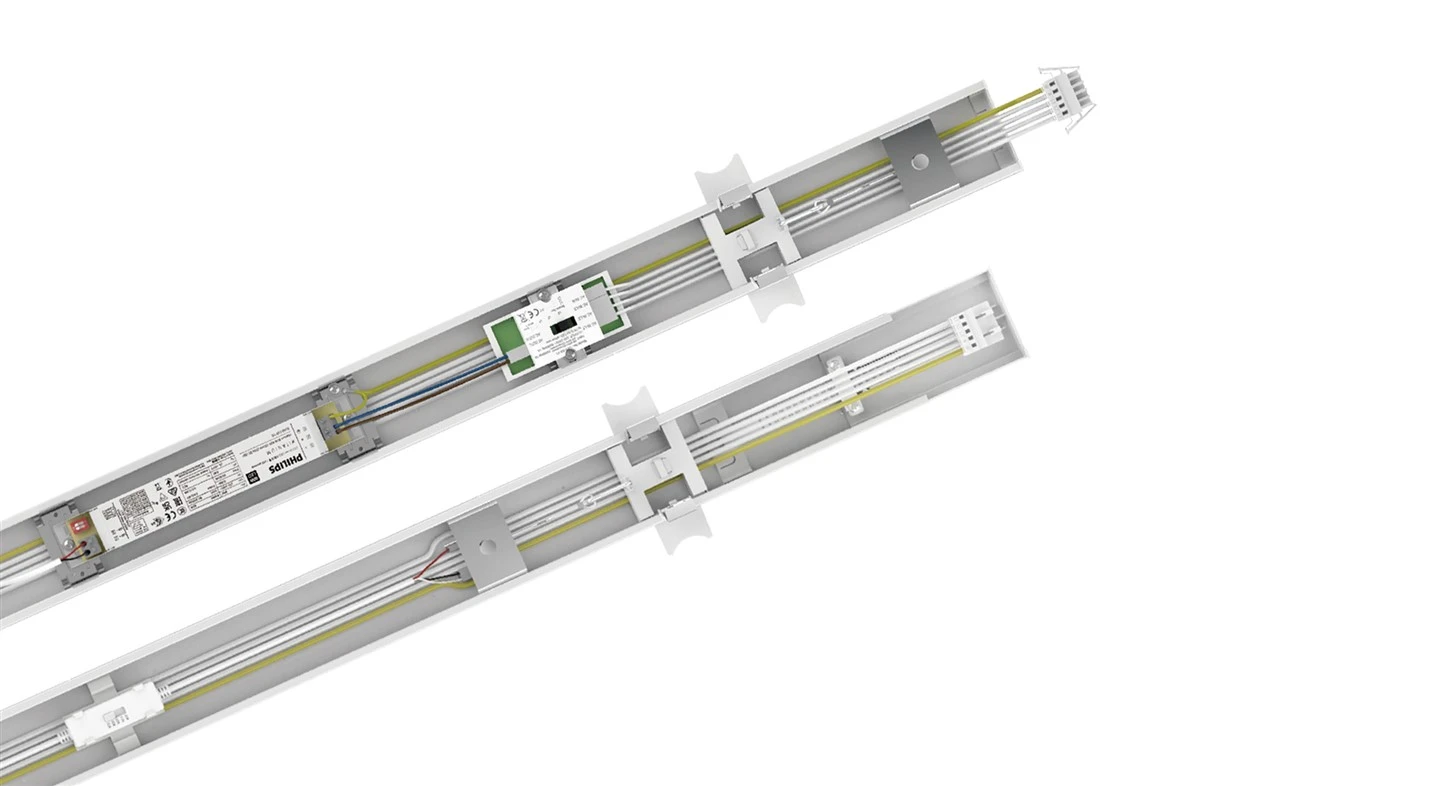

Retro Flex dilengkapi karo set kabel sambungan sing wis-kabel, dadi ora gumantung saka backbone instalasi. Terminal sambungan WAGO nyedhiyakake cara sing cepet lan gampang kanggo nyambungake modul sawise modul. Loro-lorone versi on/off 5-kabel uga versi dimming 7-kabel nduweni switch baris 3-phase sing dirating ing 400V kanggo nggawe macem-macem skenario instalasi.
PROPERTI:

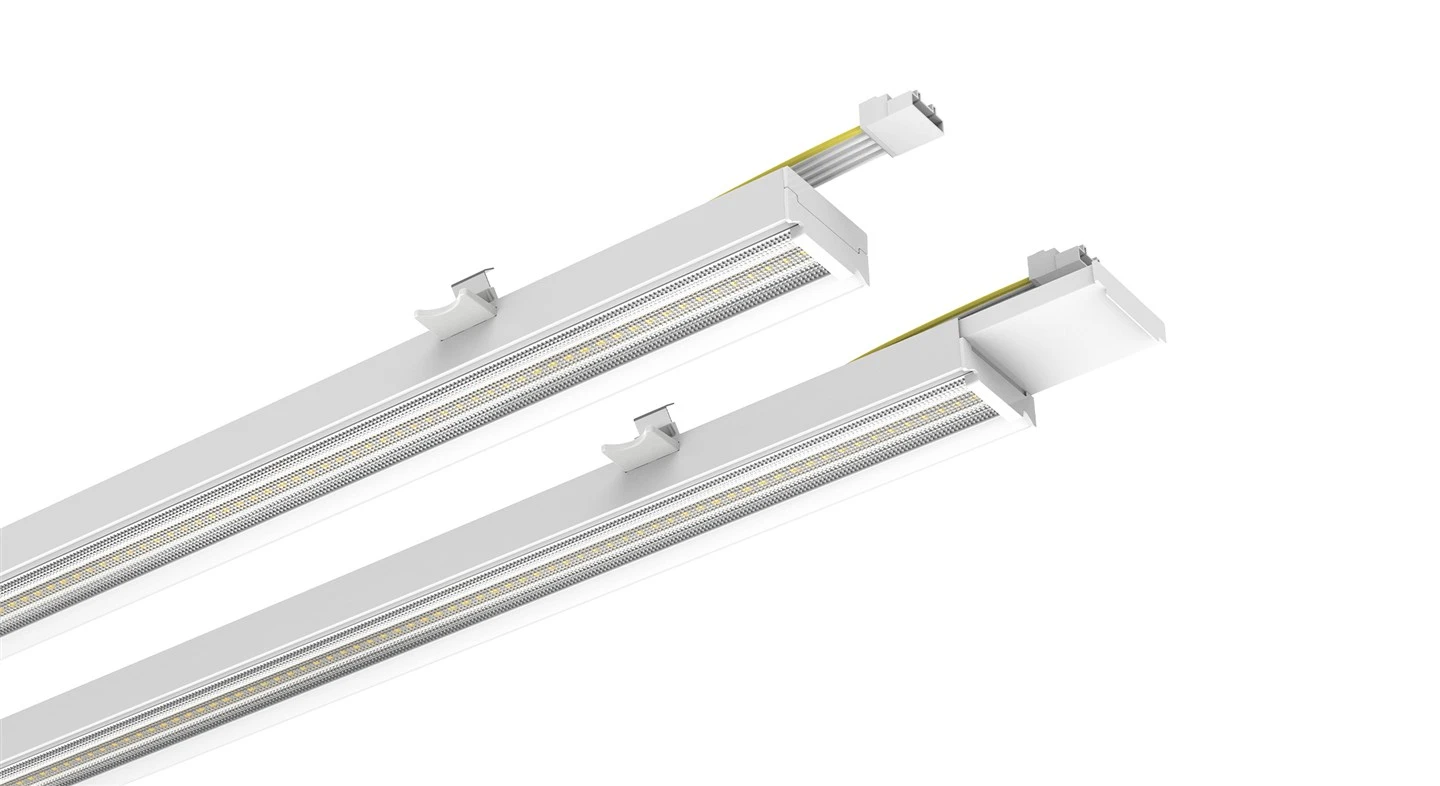

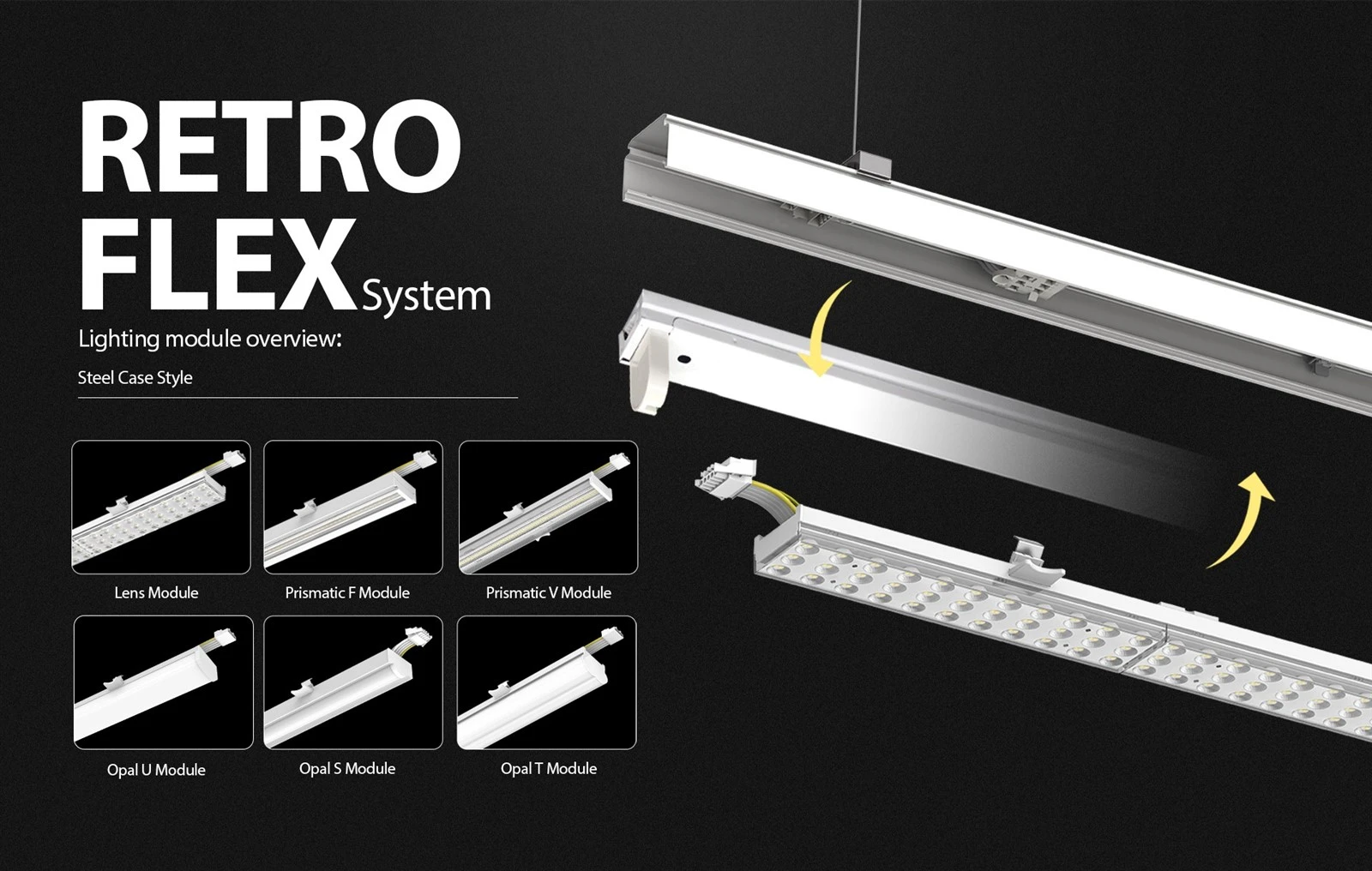

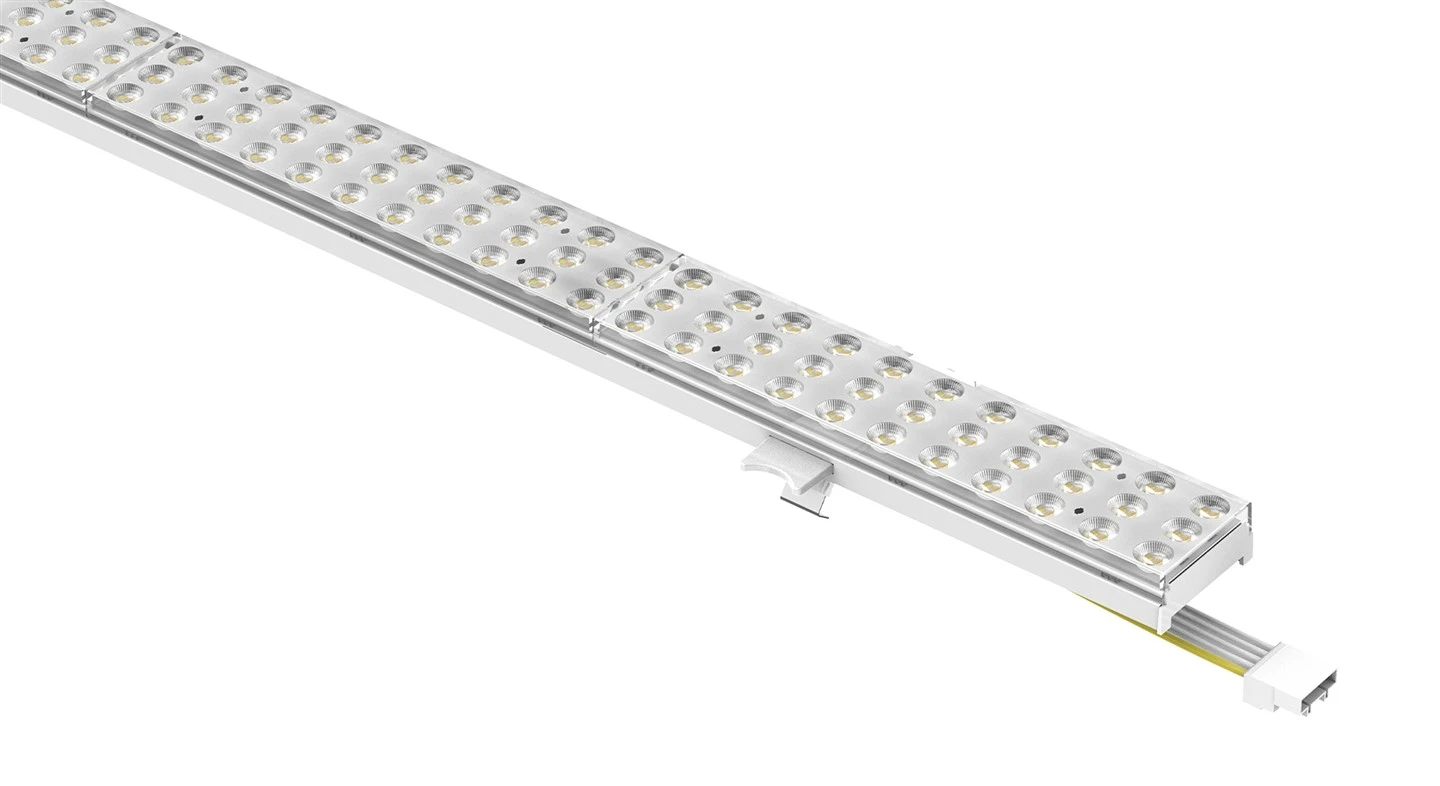

Retro Flex dilengkapi klip cerdas ing modul LED sing bisa dipasang ing kothak lampu tradisional saka macem-macem merek kayata: Philips, Trilux, Zumtobel, Siteco, Ridi lan liya-liyane. Sistem clamping fleksibel lan mandiri{1}}ngidinake modul iki dipasang ing macem-macem kothak cahya.

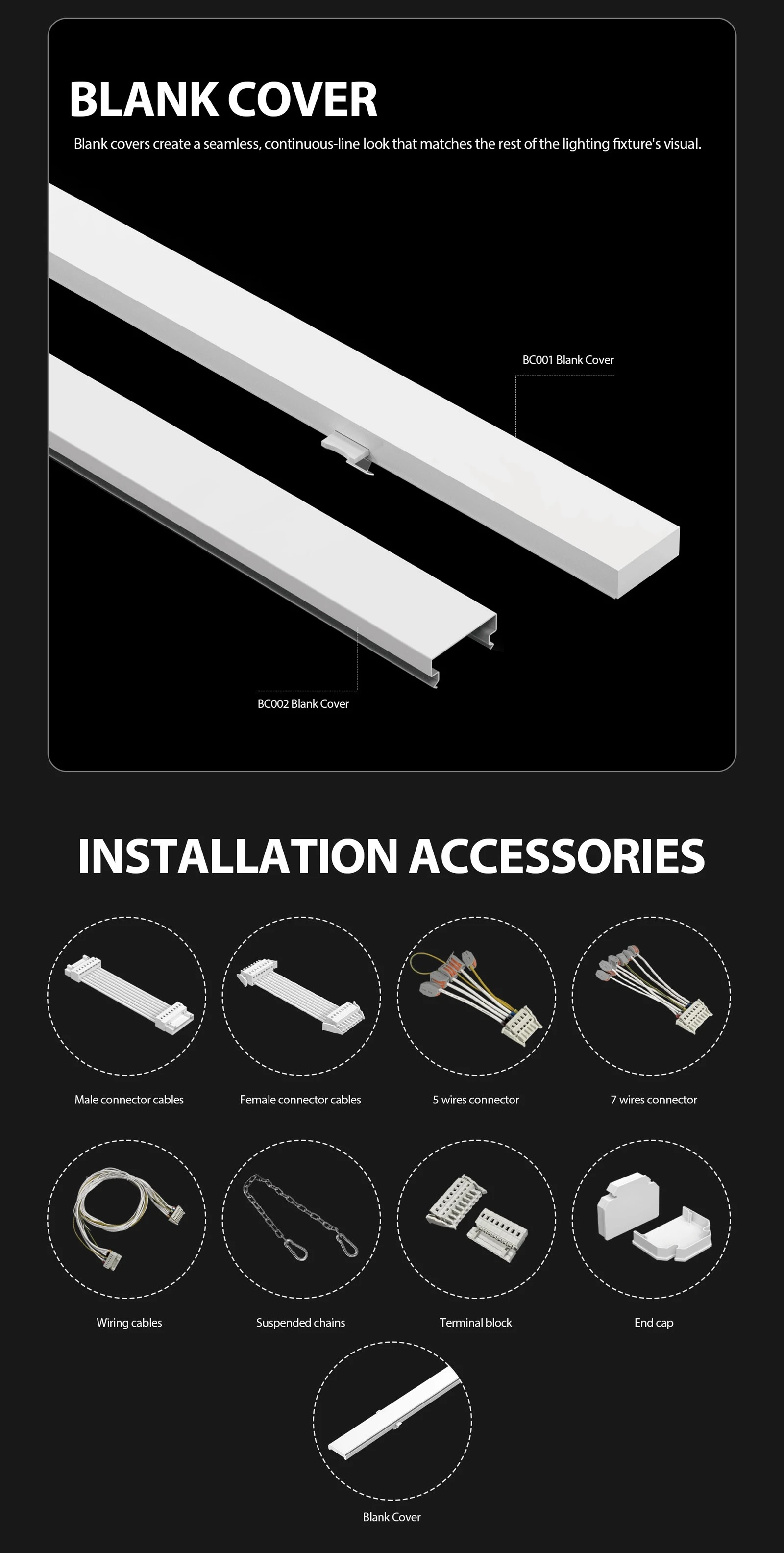

Apa bedane antara lampu neon linier lan lampu LED? Retro Flex dilengkapi karo set kabel sambungan sing wis{0}}kabel dhewe, dadi ora gumantung saka trunk sing dipasang. Terminal sambungan WAGO nyedhiyakake cara sing cepet lan gampang kanggo nyambungake modul siji menyang modul liyane.
|
Panutup |
Kode Order |
Daya Rated |
LM/W |
Lumen |
SDCM/Ra |
Kelas IP |

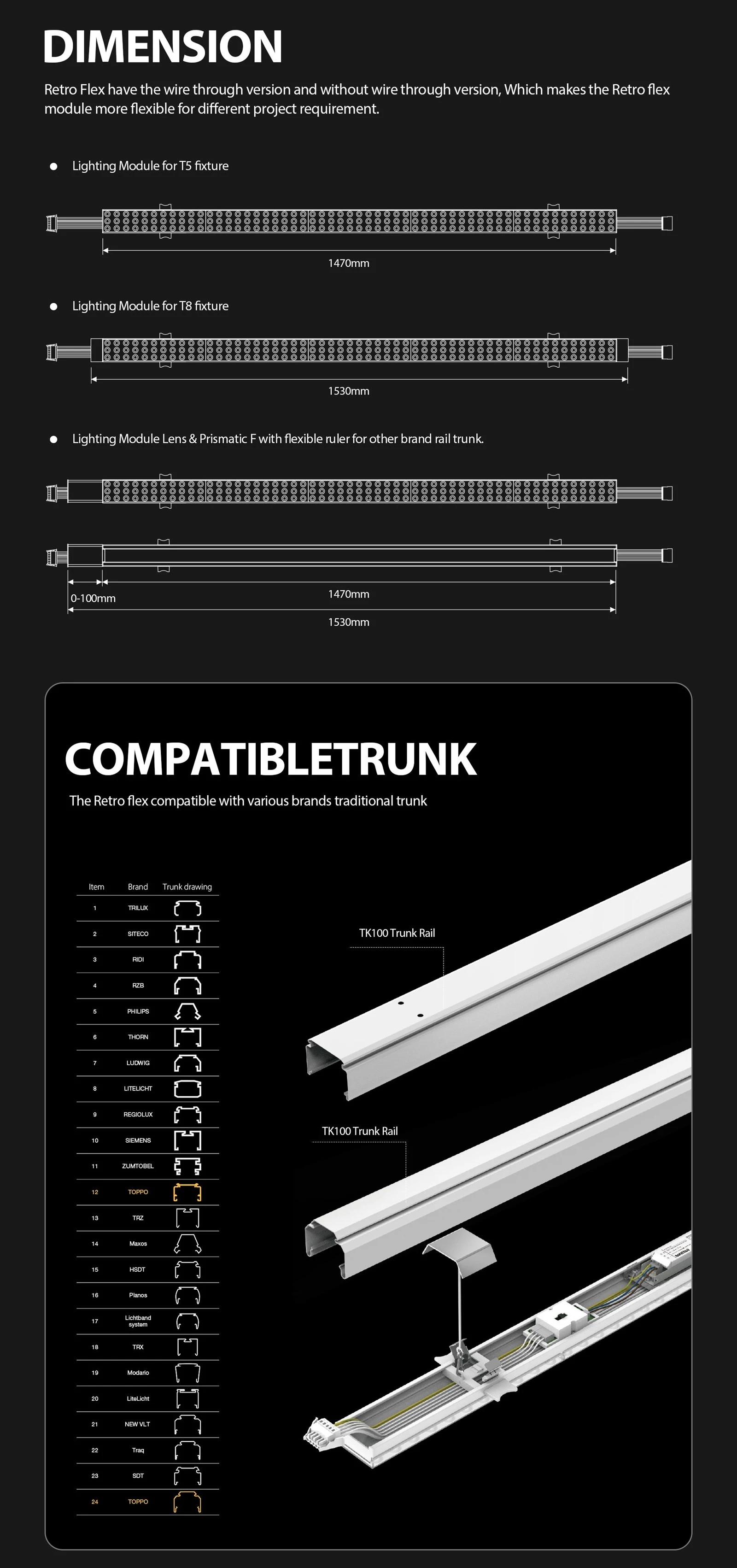

Dimensi produk |
GW/CTN |
QTY/CTN |
|
Lensa optik |
RF100-05W-DT1-75F01 |
20-75W |
Tipe.180 |
Tipe.4500-13500 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH34 |
14,5 kg |
6 bêsik |
|
Lensa optik |
RF100-05W-DT1-60F01 |
40-60W |
Tipe.180 |
Tipe.7200-10800 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH34 |
14,5 kg |
6 bêsik |
|
Lensa optik |
RF100-05W-DT1-70V01 |
50-70W |
Tipe.180 |
Tipe.9000-12600 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH34 |
14,5 kg |
6 bêsik |
|
Lensa optik |
RF100-05W-DT1-75D01 |
20-75W |
Tipe.180 |
Tipe.4500-13500 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH34 |
14,5 kg |
6 bêsik |
|
Lensa optik |
RF100-05W-DT1-70D01 |
35-70W |
Tipe.180 |
Tipe.6300-12600 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH34 |
14,5 kg |
6 bêsik |
|
Lensa optik |
RF100-05W-DT1-75F01 |
35-75W |
Tipe.180 |
Tipe.6300-13500 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH34 |
14,5 kg |
6 bêsik |
|
F. Optik Prismatik |
RF130-05W-DT1-75F01 |
20-75W |
Tipe.180 |
Tipe.4500-13500 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH39 |
14,5 kg |
6 bêsik |
|
F. Optik Prismatik |
RF130-05W-DT1-60F01 |
40-60W |
Tipe.180 |
Tipe.7200-10800 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH39 |
14,5 kg |
6 bêsik |
|
F. Optik Prismatik |
RF130-05W-DT1-75D01 |
20-75W |
Tipe.180 |
Tipe.4500-13500 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH39 |
14,5 kg |
6 bêsik |
|
F. Optik Prismatik |
RF130-05W-DT1-70D01 |
35-70W |
Tipe.180 |
Tipe.6300-12600 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH39 |
14,5 kg |
6 bêsik |
|
F. Optik Prismatik |
RF130-05W-DT1-75F01 |
35-75W |
Tipe.180 |
Tipe.6300-13500 |
SDCM<3,<5/Ra>80,90 |
IP20 |
L1470/1530XW65XH39 |
14,5 kg |
6 bêsik |
|

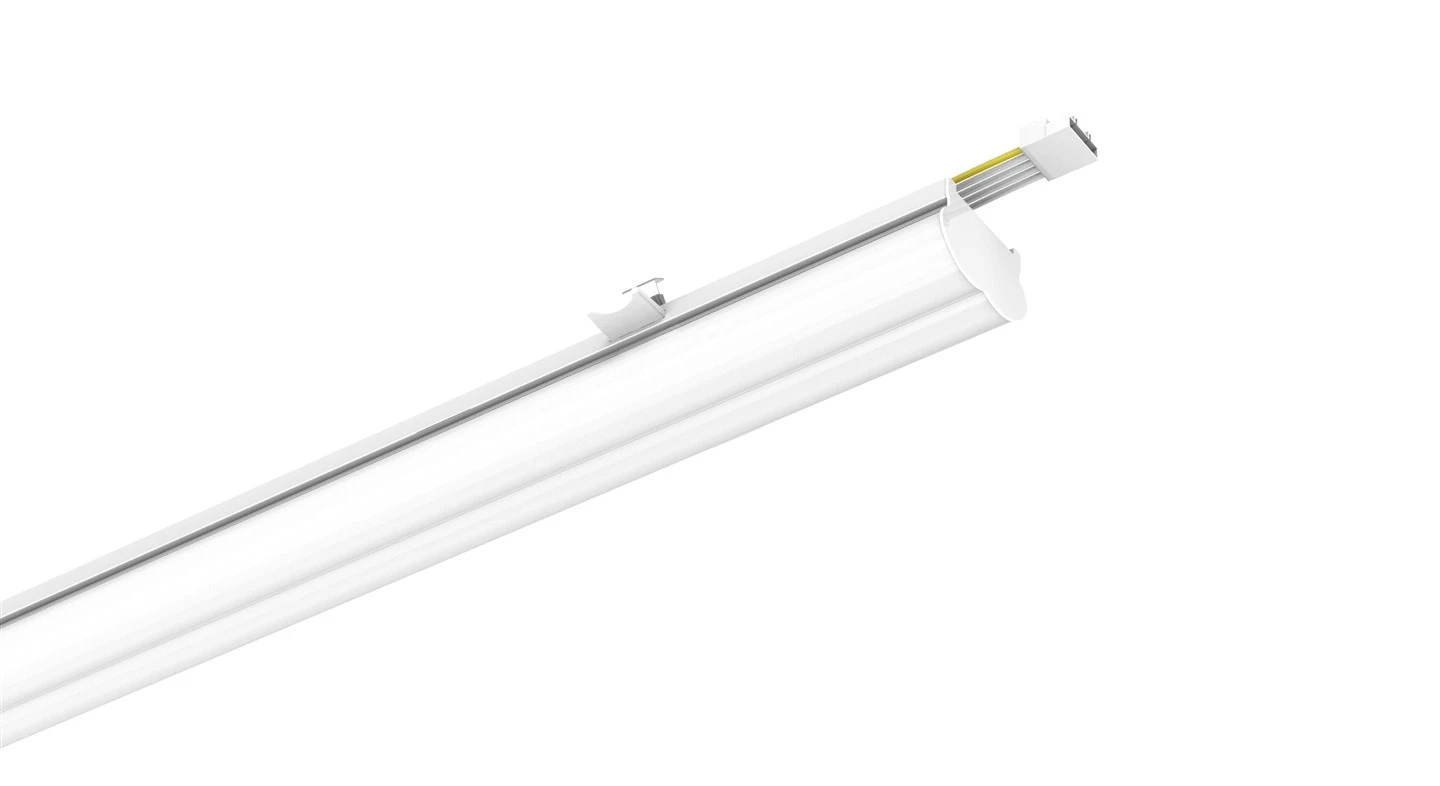

Opal T8 Kab |
RF160-05W-DT1-75F01 |
20-75W |
Tipe.180 |
Tipe.4500-13500 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1470/1530XW65XH36 |
14,5 kg |
6 bêsik |
|
Opal T8 Kab |
RF160-05W-DT1-60F01 |
40-60W |
Tipe.180 |
Tipe.7200-10800 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1470/1530XW65XH36 |
14,5 kg |
6 bêsik |
|
Opal T8 Kab |
RF160-05W-DT1-70V01 |
50-70W |
Tipe.180 |
Tipe.9000-12600 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1470/1530XW65XH36 |
14,5 kg |
6 bêsik |
|
Opal T8 Kab |
RF160-05W-DT1-75D01 |
20-75W |
Tipe.180 |
Tipe.4500-13500 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1470/1530XW65XH36 |
14,5 kg |
6 bêsik |
|
Opal T8 Kab |
RF160-05W-DT1-70D01 |
35-70W |
Tipe.180 |
Tipe.6300-12600 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1470/1530XW65XH36 |
14,5 kg |
6 bêsik |
|
Opal T8 Kab |
RF160-05W-DT1-75F01 |
35-75W |
Tipe.180 |
Tipe.6300-13500 |
SDCM<3,<5/Ra80,90 |
IP20 |
L1470/1530XW65XH36 |
14,5 kg |
6 bêsik |
